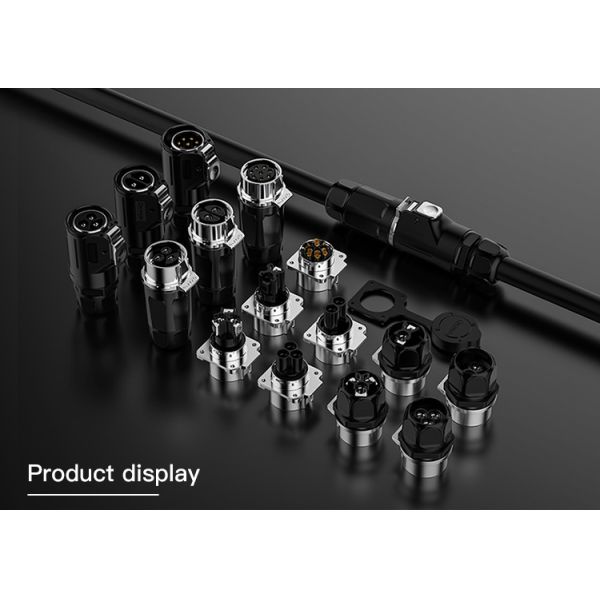

CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-28-C03PE-21-001

Certification : UL,CE,CCC,CUL

MOQ : 2

Price : $16.80-17.80

Type : Power

Application : Industrial

Gender : male and female, male and female

type : waterproof power connector

Protection level : IP65/IP67

Current rate : 35A

Voltage : 500V

flammability rating : UL94-V0

Durability : >500

Feature : Easy Installation

Package : Carton Box

Contact Now

CNLINKO M28 3 Pin Male and female 35A plug socket IP65 waterproof power connector

Product Description

CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power ConnectorCNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 8mm2 /8AWG
Diameter range Φ18mm ~Φ20mm
Contact diameter×Qty Φ4.0×3
Current rating(A) 35A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO M28 3 Pin Male and Female 35A Plug Socket IP68 Waterproof Power Connector
